QHB #5 -- April 2001
|

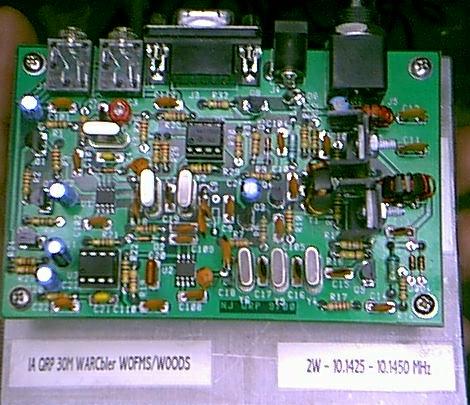

The "WARC-bler" for PSK31 on 30m, by Jeff Woods, W0ODS & Fred Spinner W0FMS |

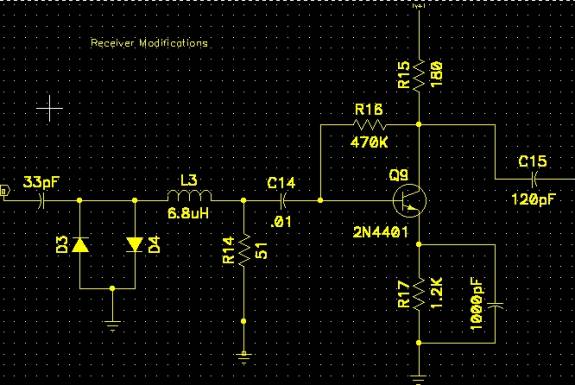

Rx Amp

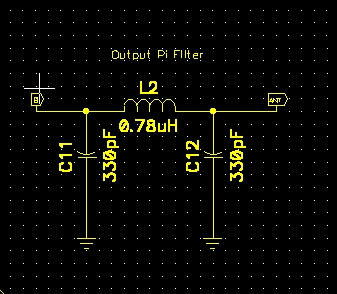

Pi Filter
Tx Amp

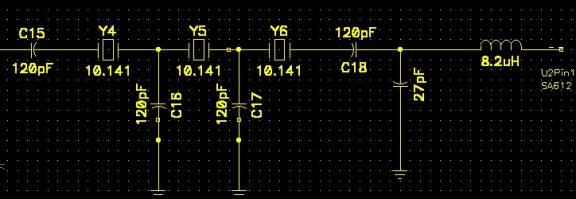

Rx Filter

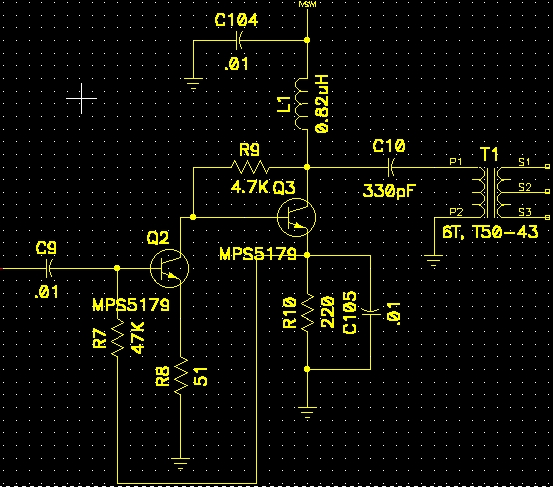

Tx Amp
2-Pole/3-Pole Filter Differences

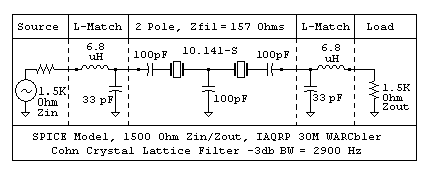

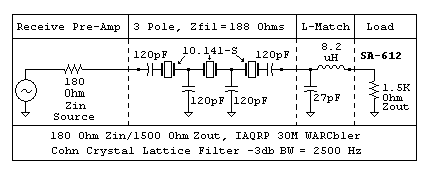

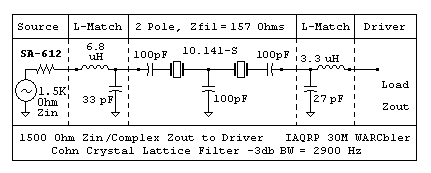

Figure 1: Final filter designs for 1500 Ohms
Figure 2
Figure 3

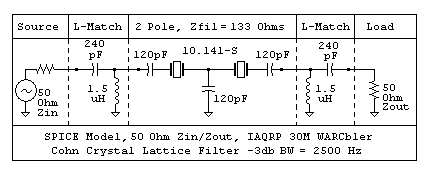

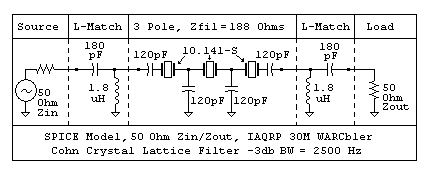

Figure 4: 50-Ohm Matched Filters

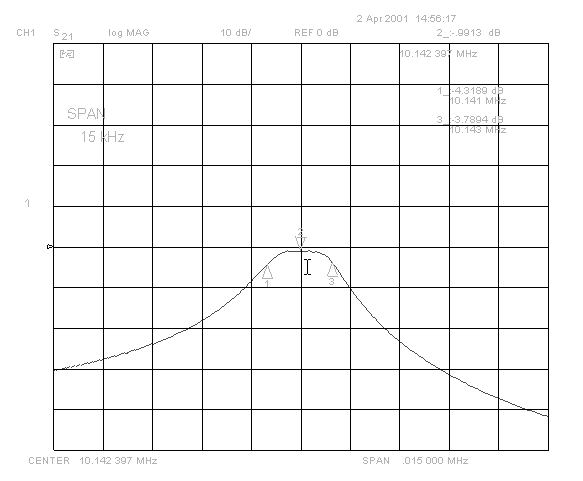

Figure 5: Filter Response

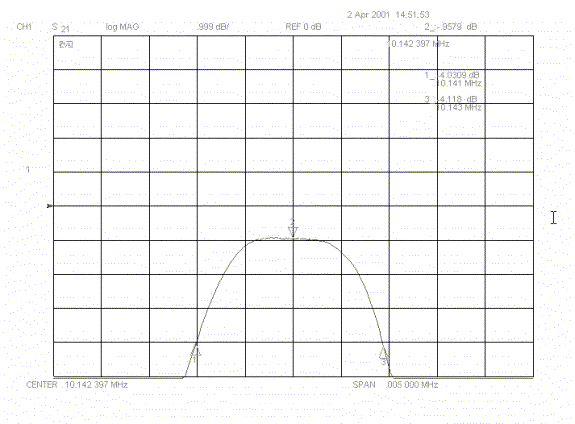

Figure 6: Closer look
Figure 7: Good Match

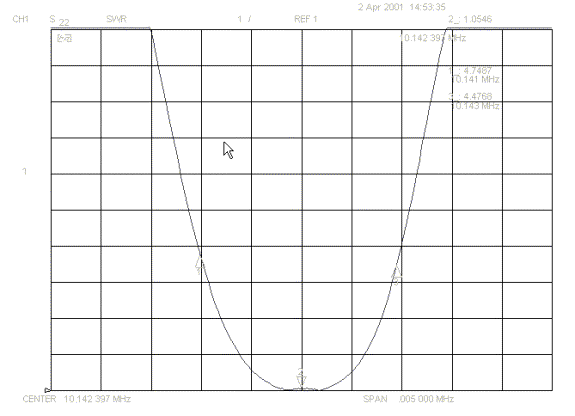

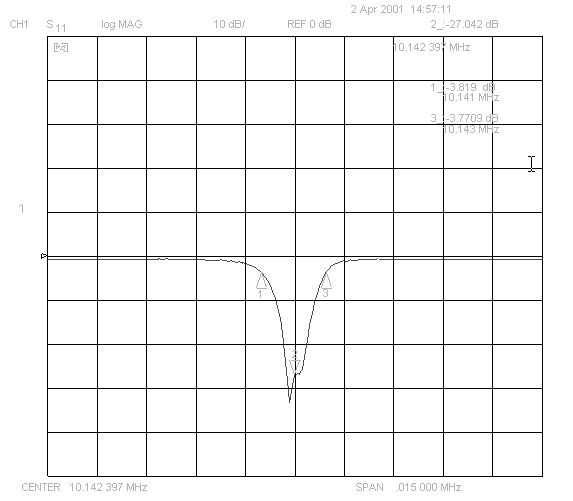

Figure 8: Return Loss
WARC-bler spectrum at 2W
output power at 10.1433 MHz Click here to see the overall WARC-bler schematic
|
