Daughtercard In the previous installment of this section, we overviewed the concept and goals of the BreadBoard project. This time we’re going to get into the details of the first hardware and software blocks – the microcontroller “heart” of the system, some I/O in the form of a keyboard and LCD, and an analog input port that will serve us in the first BreadBoard application – a simple scaling voltmeter. Background You'll be able to download new software from this
website and reprogram your Digital BreadBoard, allowing it to serve as a
memory keyer, an audio filter, a keyboard-driven data terminal, a
controller for your HF rig, a frequency counter, and more. Sharp
readers will glean that we'll even be able to make an inexpensive
portable PSK31 controller with the DSP daughterboard to be introduced in
a near-future installment of the Digital BreadBoard project.
The Digital QRP BreadBoard is being offered as a kit. See reference at the end of this segment for ordering details. The
Microcontroller
Another deciding factor in the selection process was the massive
amount of I/O pins available
for controlling all the hardware peripherals in the system – the LCD,
DDS, pushbuttons, LEDs, 7-segment displays, keyboard, keypad, serial
port, et al. Eight separate I/O ports provide up to 51 general purpose
input and output pins. Many of these pins are software configurable to
serve as analog interfaces, contain integrated pull-up resistors, and
couplings to the interrupt structure of the processor. We’ll truly be
able to work wonders in interfacing the HC908 to all the devices we want
to control. Working in
conjunction with the physical I/O pins, the HC908 has some internal macro functions
that greatly ease the programmer’s job. The microcontroller has
built-in modules for asynchronous communications
providing an RS-232 serial port, timer modules for frequency counting
and timing, programmable interrupt timing for precise interval control,
an 8-bit/8-channel A-to-D converter, a keyboard interrupt module, and a
watchdog timer. This
microcontroller is really quite amazing and is perfect for use on our
BreadBoard. Plentiful
memory is a must for a CISC
microcontroller being used in a large application such as ours. Our
HC908 has 32 kilobytes of flash memory that will hold the software
program itself. There is 1 kilobyte of RAM space available for data
variables and other time-changing data. The controller also has built-in
EEPROM (electrically erasable programmable read only memory) that will
be used to store user-set configuration, calibration and custom string
data that needs to be used every time the BreadBoard is turned on.
From a software
perspective, the HC908
supports an enhanced version of the Motorola HC05 programming model. It
has 16 addressing modes (direct, indirect, indexed, etc.), a 16-bit
index register and stack pointer, and extensive loop controls (e.g.,
BRCLR n). It supports memory-to-memory data transfers and can perform
fast 8x8 bit multiplication and 16/8 division. These last two
capabilities will prove quite valuable when it comes time to scale input
values and calculate SWR, power, and filter coefficients. Finally, the
microcontroller’s hardware and software architecture is optimized for
controller applications and for C-language support as we’ll see
downstream when the Metrowerks “Code Warrior” development tool is
presented. The
HC908 Daughtercard Although not yet mentioned, sharp readers would probably suspected a
potential problem with our selection of the 68HC908AB32 microcontroller.
A device having so many pins (specifically 64) would be required to be
packaged as a PQFP surface mount device – a plastic quad flat pack.
But not to worry! There is a plan … To enable homebrewers to start building right away, we’ve
created a 2” x 2” pc board for the surface mount HC908
microcontroller. Also
contained on this daughtercard are the components required for clock
generation, a MAX-232 chip for serial communications, a voltage
regulator and a RESET pushbutton. All I/O pins of the HC908 are brought
out to edge connectors that permit this daughtercard to be plugged into
mating pin headers on a prototype base board containing all other
components. Once the design has solidified and stabilized in the coming
months, the microcontroller daughtercard can be unplugged and
transferred to the pc version of the base board. A sketch of

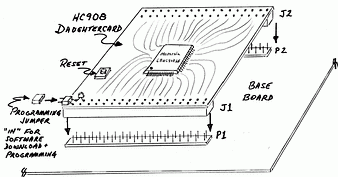

the HC908 Daughtercard is
shown in Figure
5 and a photo of it is
shown in Figure 6.
The 64-pin PQFP device is soldered in the center of the card’s top
side and its many I/O pins are connected by top-side traces to two
34-position sockets located on either side of the card. These long
sockets will plug into mating pin headers located on the base board, as
illustrated. A small
pushbutton is also provided on the top side of the daughtercard. This
normally-open momentary contact switch serves as a manual RESET for the
system. A 2-position
pin header and LED are mounted in the lower corner of the card’s top
side, serving to configure and indicate the boot loader feature. (More
on this feature in the Programming section.) The bottom
side of the Daughtercard contains the surface mount components required
for clock generation on the microcontroller – a crystal, two
capacitors and a resistor. Also located on the bottom side are the
LM78L05 3-terminal voltage regulator and associated filter caps, and the
components used for serial interface – the MAX-232 level translator
for the RS-232 communications port and the five electrolytic capacitors
used for charge pump operation. Creating a
daughtercard in this manner for the microcontroller proved to be a very
enabling decision. Besides being able to transfer the card from the prototype
base board to the final pcb base board, one
could easily use the HC908 Daughtercard for other applications.
There is lots of capability in this little 2”-square standalone card
– just supply 9-12Vdc and a serial comm line from your PC and you’ll
be able to download and burn new programs into your HC908
microcontroller. Getting
Software into the HC908
However the good news is that our 68HC908AB32 device has the ability to be in-circuit programmed, which means that a conventional +5V power supply and proper timing is all that's required in order to burn a new program into its flash memory ... even while on the target pcb of your project! We've developed a special boot loader program that allows you to download the binary image of your program over the built-in RS232 serial data port connected to your PC. All you need to do is develop a program with the (free) software development tools on your PC, download it to the BreadBoard and bingo, you'll be running your new and improved program. In this way you'll be able to take advantage of newer software programs that we'll be providing for download on this website, or you can develop your own customized versions of the programs. Pretty cool, eh? When it is
time for you to get a new software program into your HC908, connect your
PC’s serial port to the daughtercard, install the jumper on the Boot
Loader pin header and then press the RESET pushbutton to reset the
processor. The daughtercard’s LED will illuminate, indicating that the
boot loader software is running. You’ll next transfer the binary file
of your new software from your PC using a communications program like
HyperTerminal (standard in the Windows Accessory folder). Once the
software is downloaded to the HC908 controller, the boot loader proceeds
to burn the software into the controller’s flash memory. When
successfully completed, the daughtercard’s LED is turned off and the
new program be run. (More detailed instructions for this boot load
operation are supplied in the kit manual and on this column’s
companion website.) Our
First Program: The Scaling
Voltmeter The Scaling
Voltmeter software program
is designed to read an analog input port, scale the value to reflect the
actual voltage, and display that voltage reading on the LCD. A standard
IBM-compatible PC keyboard is used by the operator to input the scaling
factor and to command the readings to be started. The program bay be
used to read the relative power by connecting the analog input pin
through a suitable interface circuit to the RF output of a transmitter.

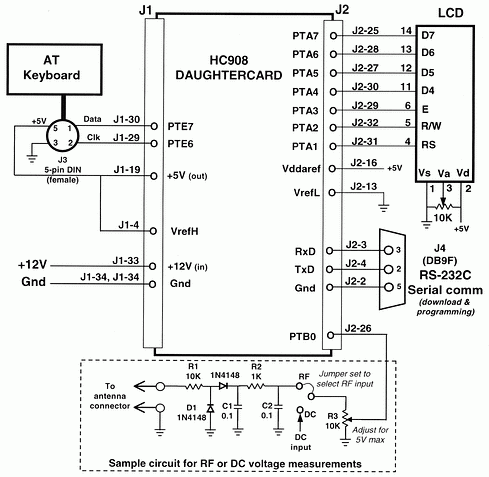

Refer to the diagram below for an example application. The voltmeter
program is constructed by designing some common
libraries of routines for:
LCD output, keyboard input, analog
input, system initialization, and for the math that performs the
scaling. These routines are “glued together” in the mainline of the
program that executes when power is applied to the system. The
liberally-commented source code for this software program is posted on
our companion website and is available for individual scrutiny. The
website also goes into much greater description on the software
construct and operation, thus providing an instructional tutorial, of
sorts. Gathering parts
for the building up the first BreadBoard project is very simple. The
HC908 Daughtercard is available from the NJQRP Club. The IBM-compatible
keyboard can be borrowed from your main PC, or you could obtain a
surplus mini-keyboard like the Dauphin unit pictured in Figure
4. (We've collected a number of these keyboards and will be offering them
as part of the Kit when it's made available later this year.) The LCD
can be any standard 2-or-4-line display sporting the popular Hitatchi
44780 controller chip. (Digi-Key and Jameco have several applicable
displays.) Just ensure the connecting pins match the functions shown on
the BreadBoard schematic diagram. Then all you need to do it get a few
diodes, caps and resistors for the analog interface, melt some solder to
hold it all together and apply a 12V dc power supply. If all is wired
properly, you’ll see a welcome message displayed on the LCD and
you’ll be in business! Next
Time Acknowledgements
Special thanks go to Craig Behrens, NM4T, who has been a collaborator,
an enabler and a major cheerleader for the Digital QRP Breadboard project.
His encouragement and contribution has been
a decisive factor in bringing this project to the QRP community. Notes 1) HC908 Daughtercard – assembled, tested, with manual, pre-programmed with the software in this column. Send $25 check or Money Order to “George Heron, N2APB”, 2419 Feather Mae Ct, Forest Hill, MD 21050. (DX orders add $5 extra please.) PayPal payment also accepted, send to n2apb@amsat.org . The Digital QRP Breadboard kit is being provided by the volunteer efforts of NJQRP Club. Parts procurement, manual publication, order processing and sorting/shipping operations are being handled by the club’s “kitting team”: AA3UR, WA3OWT, KE3S, NU3Y and N2CX – thanks guys! Page last modified:
