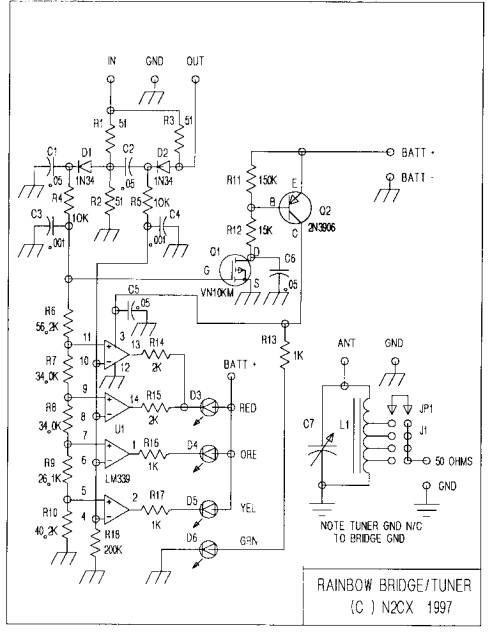

Schematic

For Additional technical info ...

• Check out the recent QRPp and QRP Quarterly articles, or
• Contact Joe Everhart, N2CX at n2cx@voicenet.com

Please Note: The Rainbow Bridge/Tuner is copyright by N2CX ... express written authorization is required for commercial use of any part of this project.
